16 Gallon Undercarriage Water Tank for Ford Transit by Agile Offroad

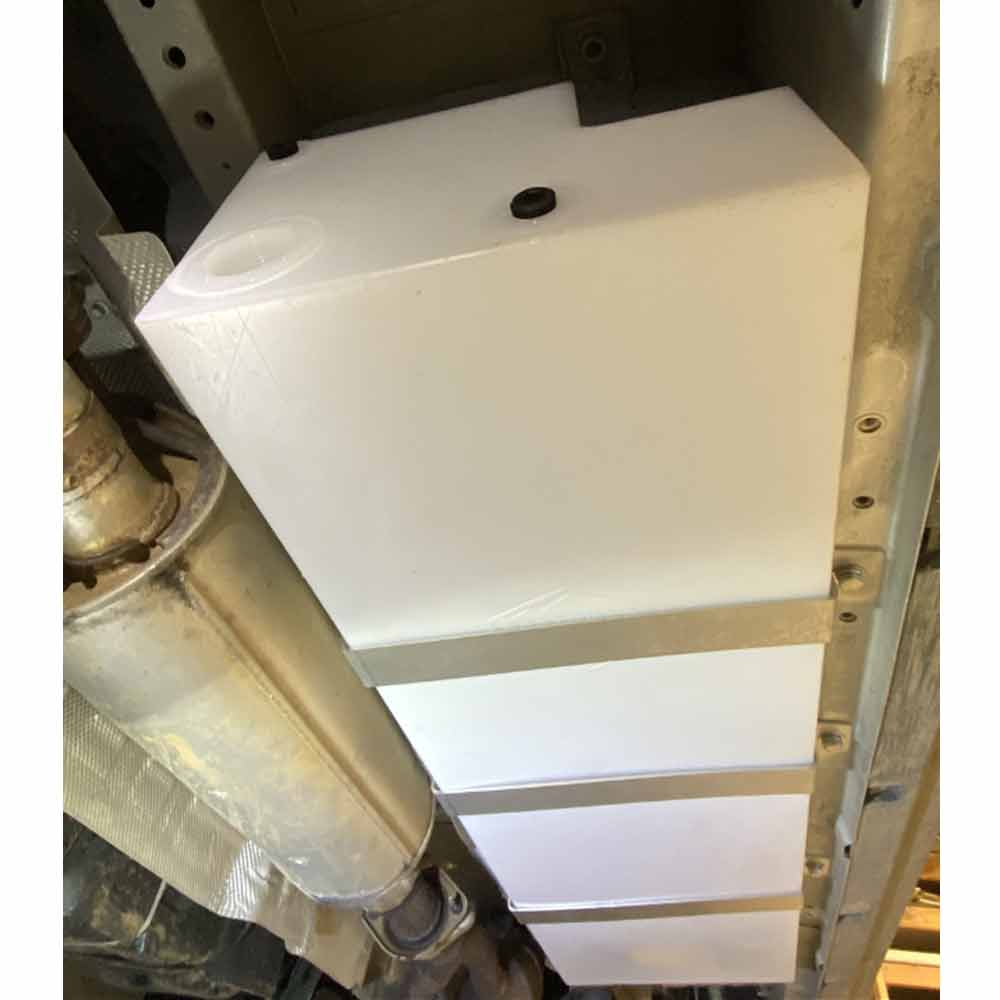

This 16 Gallon Ford Transit Undercarriage Water Tank is designed to fit under the van on the Passenger side under the slider door area but can also fit the driver side next to the fuel tank.  (3) Stainless steel laser cut straps, 3/8″ hardware and 3/8″ rivnuts are included (Rivnut tool needed for installation not included).  Tank fits Ford Transit vans but may also fit other makes and models as well.

• Fits Transit Van undercarriage Passenger side slider door area.
• Tank will also fit Driver side.
• Tank can be used for fresh or grey water
• 16 Gallon Tank
• Tank is designed for non pressurized system. Needs to be vented.
• Overall dimensions: 48″L x 8.5″H x 13″W.
• BPA Free, food grade polyethylene plastic.
• Tank has (1) 1.5″ NPT port and (2) 1/2″ NPT ports on end that will face the rear of van.
• *(3) Stainless steel Brackets, Stainless steel hardware, and rivnuts included.
• Requires drilling of (3) new holes for 3/8″ rivnuts near pinch weld, enlarging (2) hexagonal holes on frame and using (1) factory bolt for exhaust hanger location.
• This will require a rivnut tool.

Fit Notes:

• Does NOT Fit Transit 130 Wheel Base
• Does NOT Fit Transit with Factory Running Boards
