16 Gallon Undercarriage Water Tank for Ford Transit by Agile Offroad

$299.00

Availability: In stock

$339.00 Price reduced!

16 Gallon Transit Undercarriage Water Tank

  • 16-gallon capacity
  • BPA Free
  • Can fit passenger or driver side
  • Can be used for fresh or grey water

TEI tested & listed / RVIA Approved
TEI tested & listed / RVIA Approved water tank

-

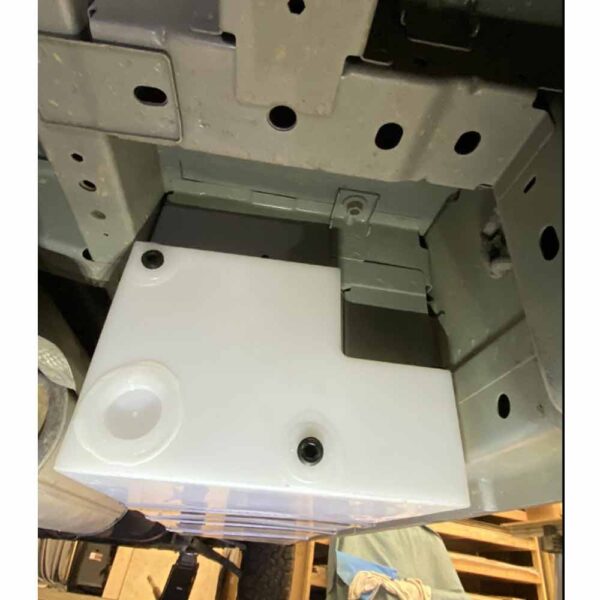

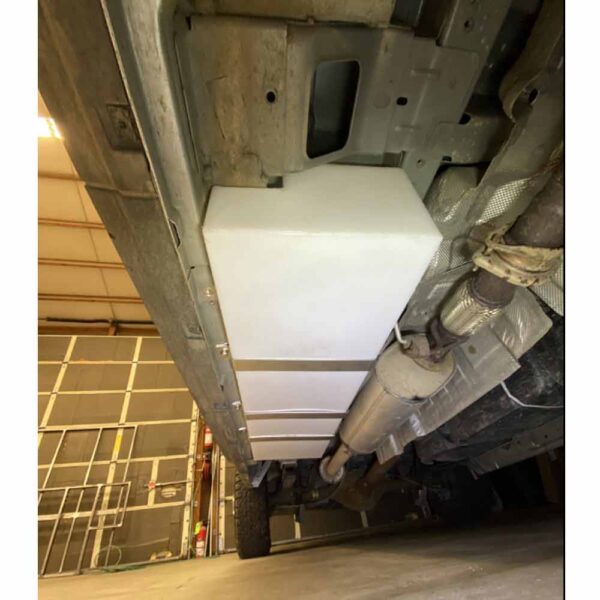

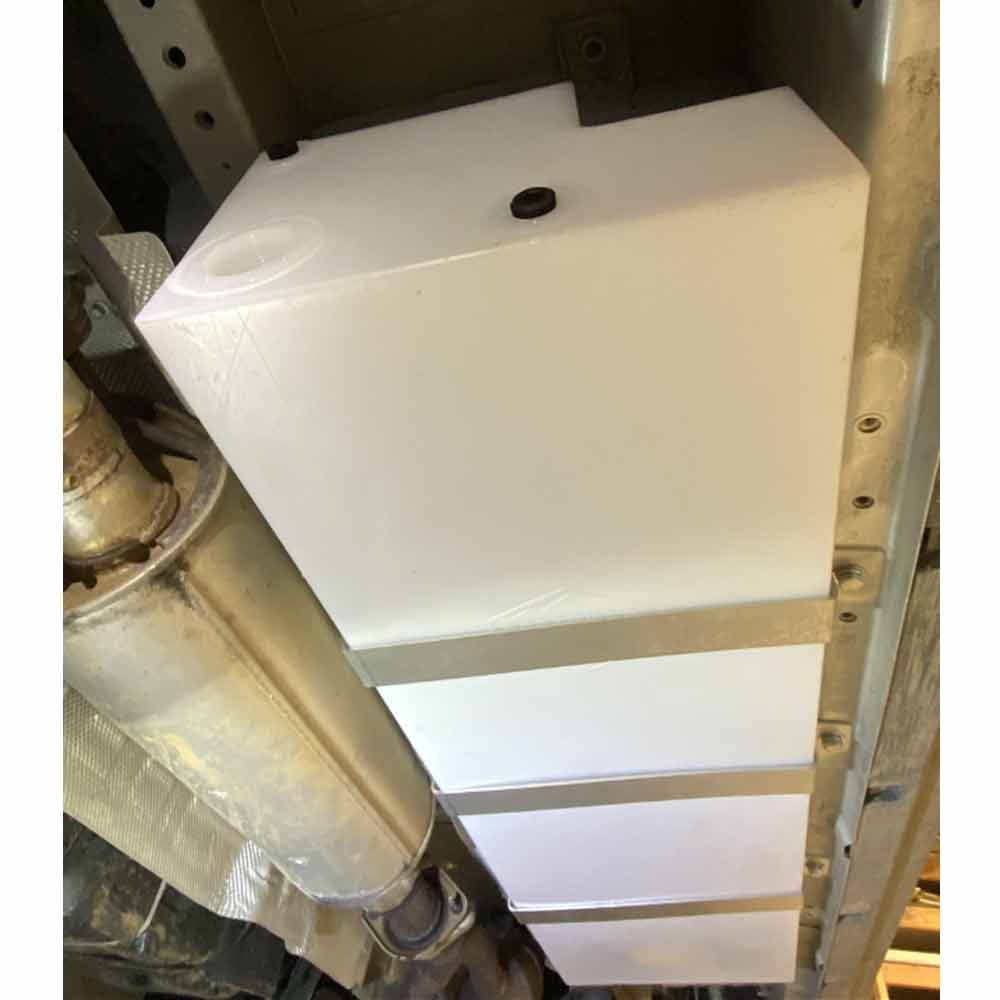

This 16 Gallon Ford Transit Undercarriage Water Tank is designed to fit under the van on the Passenger side under the slider door area but can also fit the driver side next to the fuel tank.  (3) Stainless steel laser cut straps, 3/8″ hardware and 3/8″ rivnuts are included (Rivnut tool needed for installation not included).  Tank fits Ford Transit vans but may also fit other makes and models as well.


Fit Notes:

  • Does NOT Fit Transit 130 Wheel Base
  • Does NOT Fit Transit with Factory Running Boards

Vehicle Fit

Ford Transit
Fifth Generation: 2015+

Fit Notes:

  • Does NOT Fit Transit 130 Wheel Base
  • Does NOT Fit Transit with Factory Running Boards
Weight 20 lbs
Dimensions 25 × 29 × 13 in
Capacity

Vehicle Fit

,

Vehicle Make

Ford

Vehicle Model

Transit

Vehicle Year

2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Specifications

  • Fits Transit Van undercarriage Passenger side slider door area.
  • Tank will also fit Driver side.
  • Tank can be used for fresh or grey water
  • 16 Gallon Tank
  • Tank is designed for non pressurized system. Needs to be vented.
  • Overall dimensions: 48″L x 8.5″H x 13″W.
  • BPA Free, food grade polyethylene plastic.
  • Tank has (1) 1.5″ NPT port and (2) 1/2″ NPT ports on end that will face the rear of van.

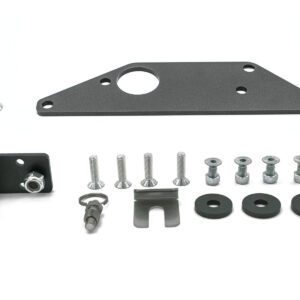

  • *(3) Stainless steel Brackets, Stainless steel hardware, and rivnuts included.
  • Requires drilling of (3) new holes for 3/8" rivnuts near pinch weld, enlarging (2) hexagonal holes on frame and using (1) factory bolt for exhaust hanger location.
  • This will require a rivnut tool.

16 Gallon Ford Transit Undercarriage Water Tank

Instructions

VAN BUILD WATER TANK INSTALLATION
