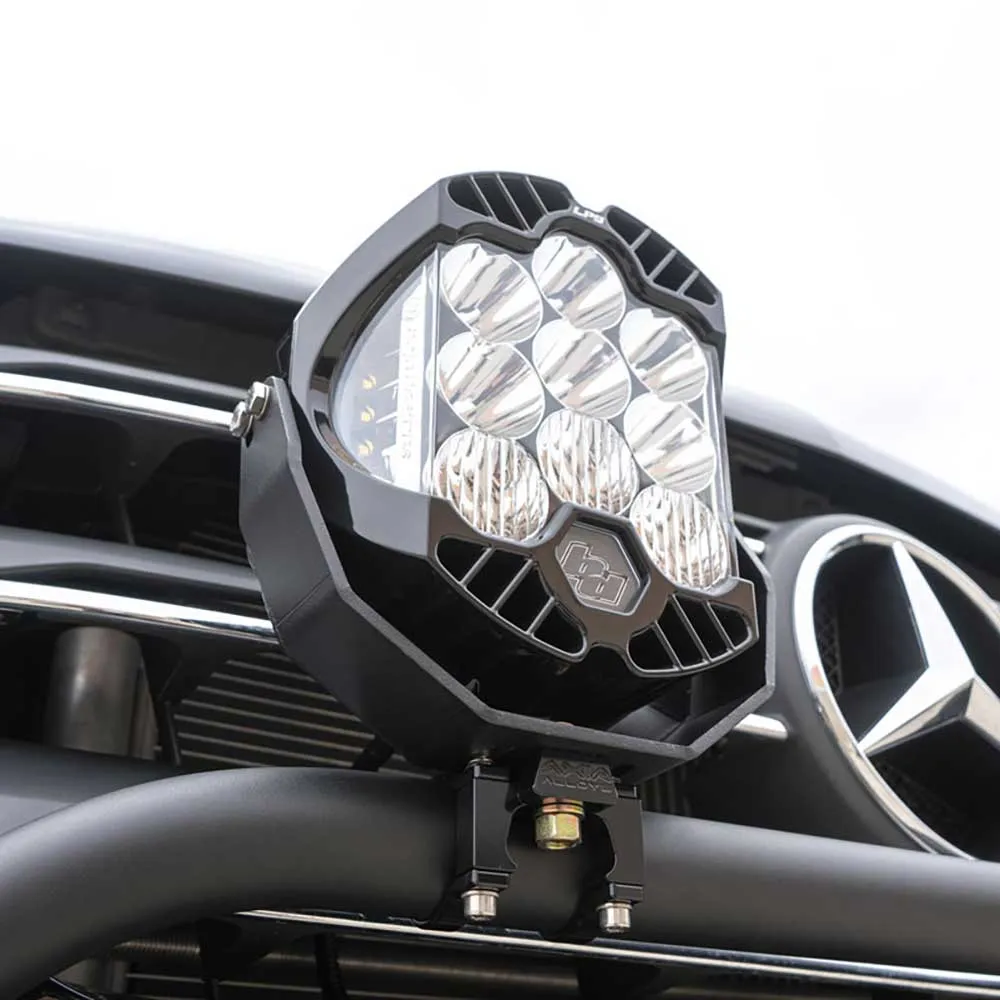

Baja Designs LP9 LED Light – Driving/Combo Pattern

$617.95$628.95

SKU: N/A Categories: , , , Tags: ,

-

A design that was inspired by Baja Designs’ legendary 8″ La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.

The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Driving/Combo Pattern: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Sold individually.

Features

Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Weight N/A
Dimensions N/A

Specifications

Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps:  105W / 7.6A
IPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A
Backlight Wattage/Amps: 2.8W / 0.2A
Dimensions: 8" Diameter/ 3.25" Depth
Weight: 6.5lbs
Mating Connector: DT06-4S Deutsch
LED Life Expectancy: 49,930 Hours
Front Lens:  Hardcoated Polycarbonate
Housing:  Hard Anodized Aluminum
Bezel: Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)

IK10 Compliant (Mechanical Impact Testing)
